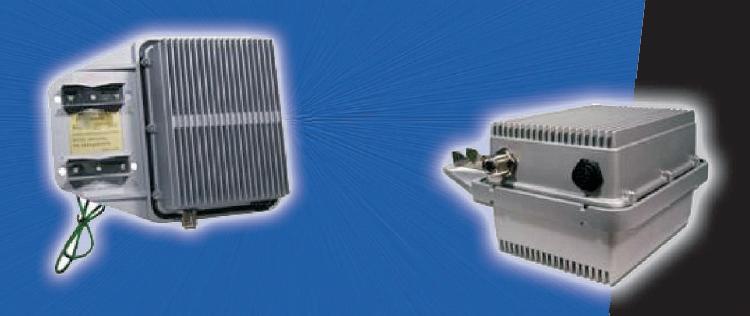

Canna 2410gM
Broadband Wireless Outdoor Solutions |
|
Features
• Wireless LAN IEEE802.11b/g compliant.
• Solid housing provides protection against rigorous
weather conditions IP68 compliant.
• Four operating modes support: AP ,Wireless Client
Repeater and Wireless Bridge.
• Strong network security with 64/128/152-bit WEP
encryption and WPA.
• One detachable N-type male connectors can connect
to external high gain antenna for expanding
connection distance.
• Provides RSSI indication for AP, Repeater and
Wireless Bridge.
• Power over Ethernet design IEEE802.3af compliant.
|
 Download Information |
|

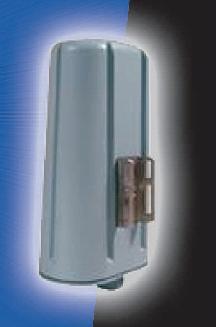

Canna 24005g
Broadband Wireless Outdoor Solutions |
|
Features
• Wireless LAN IEEE802.11b/g compliant.
• Solid housing provides protection against rigorous
weather conditions IP68 compliant.
• Four operating modes support: AP ,Wireless Client
Repeater and Wireless Bridge.
• Strong network security with 64/128/152-bit WEP
encryption and WPA.
• Provides RSSI indication for AP, Repeater and
Wireless Bridge.
• Power over Ethernet design IEEE802.3af compliant. |
| Download Information |
|

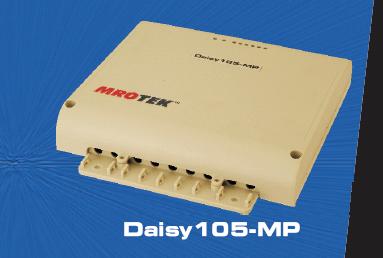

Daisy105-MP
Power-over-Ethernet extender |
|
Features
• Wire-speed switching device.
• 2 nos - PoE network ports & 3 nos - PoE user ports
(10/100Base-T).
• Short-circuit protection on all ports.
• Power surge protection.
• Power Enable / Disable on all ports.
• Local DC Power feed option available.
• IP64 compliant weather proof enclosure.
• Secured data access across user ports.
• Management traffic on tagged VLANs.
• Upto 5W power per PoE user port.
• LITEview NMS software on Linux platform.
• Data and power management on all ports.
• Periodic update of port status to NMS. |
| Download Information |
|

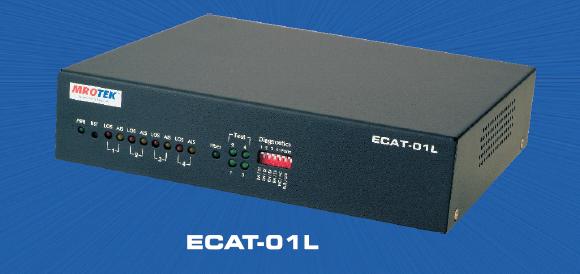

ECAT-01L
TDM Over Ethernet
Access Multiplexer |
|
Features
• 4E1channels over Fast Ethernet fiber port.
• Link and port status of local and remote units.
• DIP switches for loopback diagnostics.
• Alarm monitoring Indication.
• Built-in auto-ranging AC-DC power supply.
• Supports multimode or single mode fiber.
• SC connector for Optical network port.
• Support for long haul transmission upto 100Kms.
• Conforms to ITU G.703, G.823, G.824, GR-499
core jitter requirements and IEEE Ethernet standards. |
| Download Information |
|

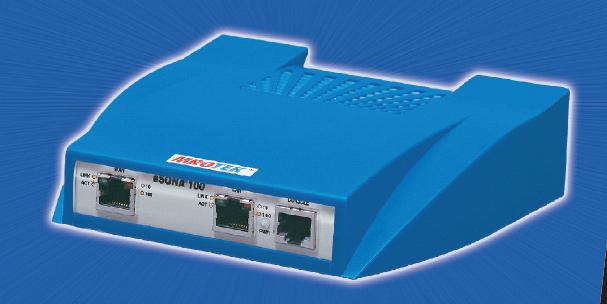

eSONA 100
Intelligent Wire-speed
Bandwidth Manager |
|
Features
• Auto MDI-I/MDI-X on 10/100 Mbps Ethernet Port (RJ- 45).
• 10/100BASE-T or 100BASE-FX for WAN.
• Ethernet bandwidth provisioning upto100Mbps, 1Kbps step.
• Upto 88 bidirectional queues using layer L2-L4 based
classification for bandwidth management.
• Traffic Classification based on TCP/UDP port, IP Address,
IP Range, IP Subnet, VLAN tag and MAC Address.
• Time of Day / Day of week implementations for Policies.
• Class specific statistics available.
• Metering information on the actual bandwidth consumed.
• CLI, SNMP and Telnet based access for easy management.
• Dual firmware support.
• Simple Backup and Restoration of configuration. |
| Download Information |
|

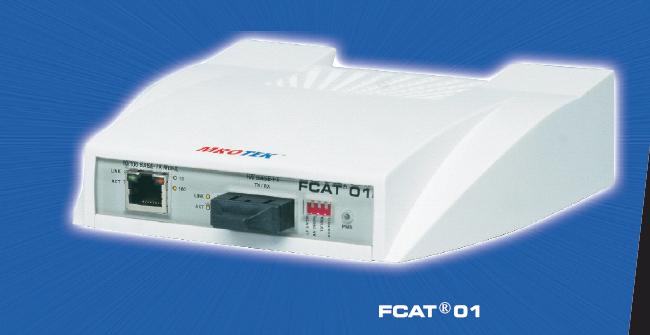

FCAT 01
Fast Ethernet Media converter |
|
Features
• Single channel stand-alone media converter.
• 10/100BASE-T to 100BASE-FX media conversion.
• Auto MDI-I/MDI-X copper Ethernet port.
• DIP switch configuration for copper Ethernet port.
• SC connector for 100BASE-FX fiber port.
• Link, Activity & Speed LED indications.
• Supports Multimode, Single mode & Single fiber.
• Long haul transmission upto 100 kms support.
• LFP (Link Fault Pass through) allows the fiber failure
to be propagated to the copper port. |
| Download Information |
|

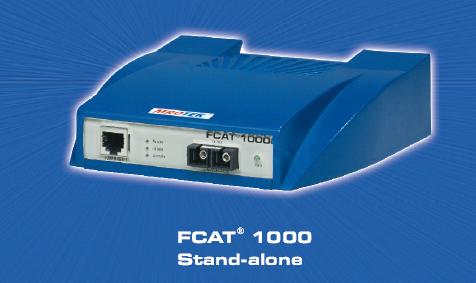

FCAT 1000
Gigabit Ethernet
Media Converter |
|
Features
• Single channel stand-alone media converter.
• Media Conversion from 1000BASE-T to 1000BASE-X.
• Auto MDI-I/MDI-X copper Ethernet port.
• RJ-45 connector for 1000BASE-T port.
• SC connector for 1000BASE-X port.
• Link & Activity LED indications.
• Supports multi mode or single mode fiber.
• Single mode option available at 10km & 40km.
• Single mode option available at 10km & 40km. |
| Download Information |
|

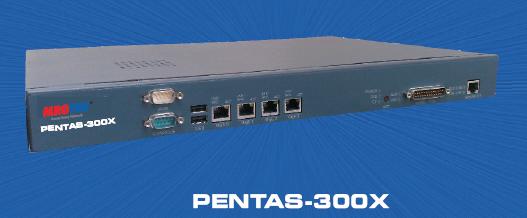

PENTAS-300X
High performance Managed
Edge Router |
|
Features
• 120kpps performance.
• 4 Onboard 10/100/1000Base Tx Ethernet Interfaces.
• Fixed WAN slots.
• Onboard Aux, Console & USB ports.
• Inbuilt 256 MB Flash Memory.
• Inbuilt 512 MB DRAM.
• WAN interface options include E1/V.35/ISDN.
• Static Routing.
• Dynamic Routing : RIP v1& v2, BGPv4, OSPFv2.
• Stateful Firewall.
• IPsec & SSL VPN's.
• IDS/IPS Customizable database.
• ACL's.
• Inbuilt 512 MB DRAM.
• Web, URL & Content Filtering.
• Graceful Restart, Safe Rollback & Fail-over support. |
| Download Information |
